uCentum^™

Thoracolumbosacral screw-rod system

uCentum is an implant system for dorsal surgical stabilization, fixation and correction of the adult thoracic and lumbar spine.

Complete system for open and percutaneous applications
One system for different treatment options
Navigation module for preparation and screw insertion
All implants available sterile and partially non-sterile

uCentum^™

Thoracolumbosacral screw-rod system

Product info

Downloads

Consultation

Product demo

Surgery support

Order

Product info

Downloads

Consultation

Product demo

Surgery support

Order

Dorsal stabilization of the thoracic to lumbosacral spine

Looking for a screw-rod system for dorsal stabilization of the thoracic to lumbosacral spine to offer your patients a customized procedure tailored to their needs?

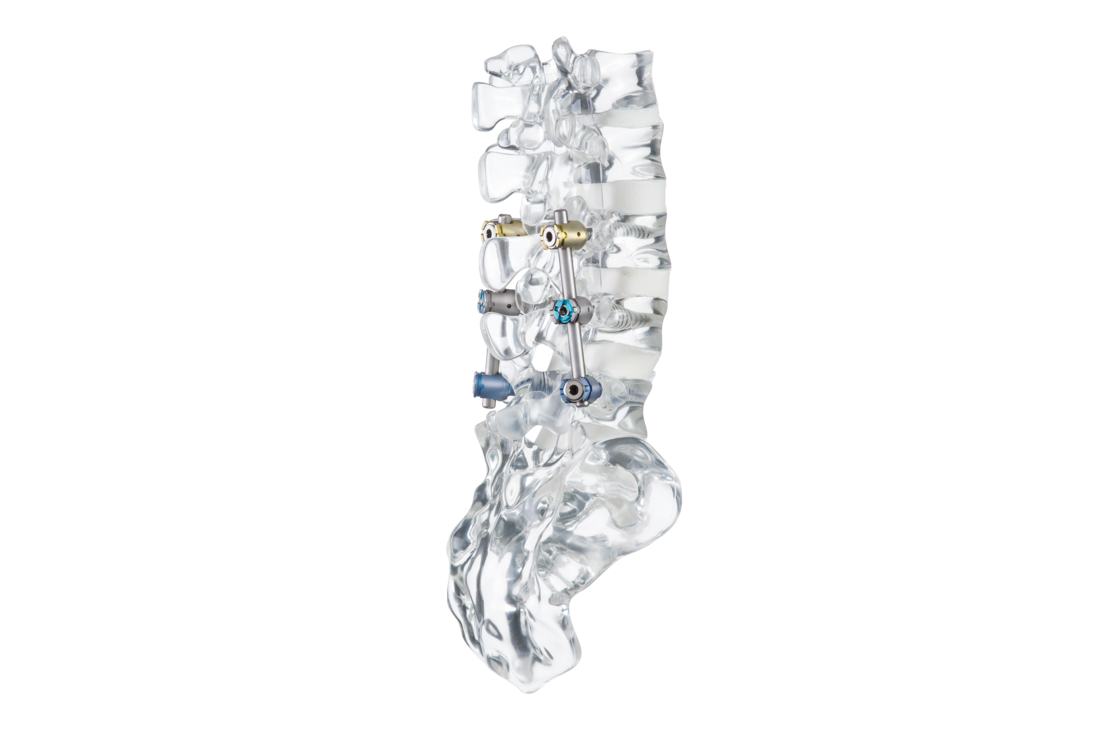

uCentum is a complete system for dorsal surgical stabilization, fixation and correction of the adult human thoracic and lumbar spine, if necessary including the sacrum.

The system can be used in open and percutaneous applications and can be used in conjunction with the Brainlab Navigation in both cases. uCentum can also be combined with the cervicothoracic screw-rod system neon³ and uBase iliosacral screws to enable treatment of the entire spine.

All of the screw versions can be combined freely and used to some extent with the same instruments. Thanks to the wide range of implant components, it is possible to offer individual adjustment to the patient.

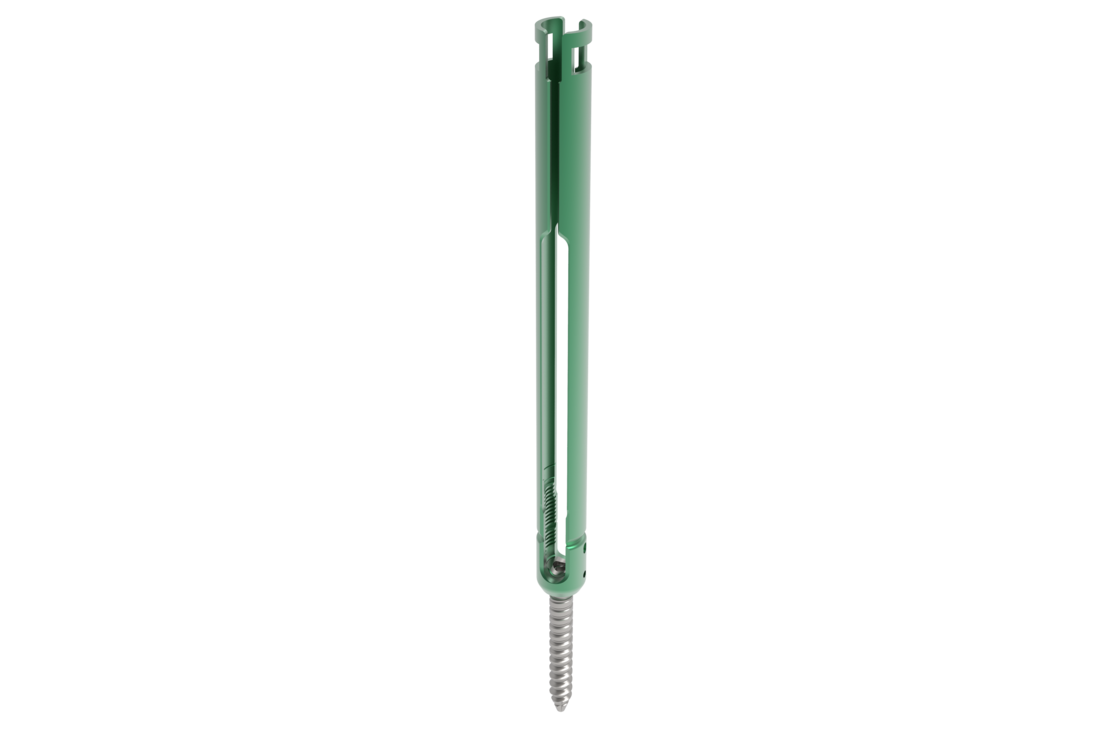

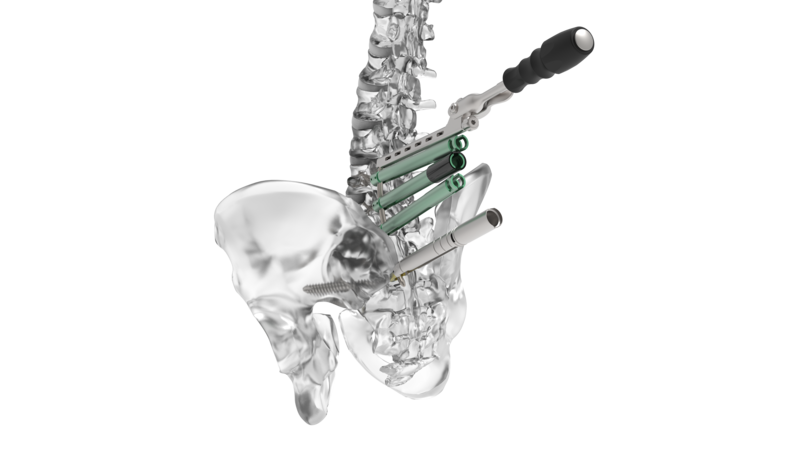

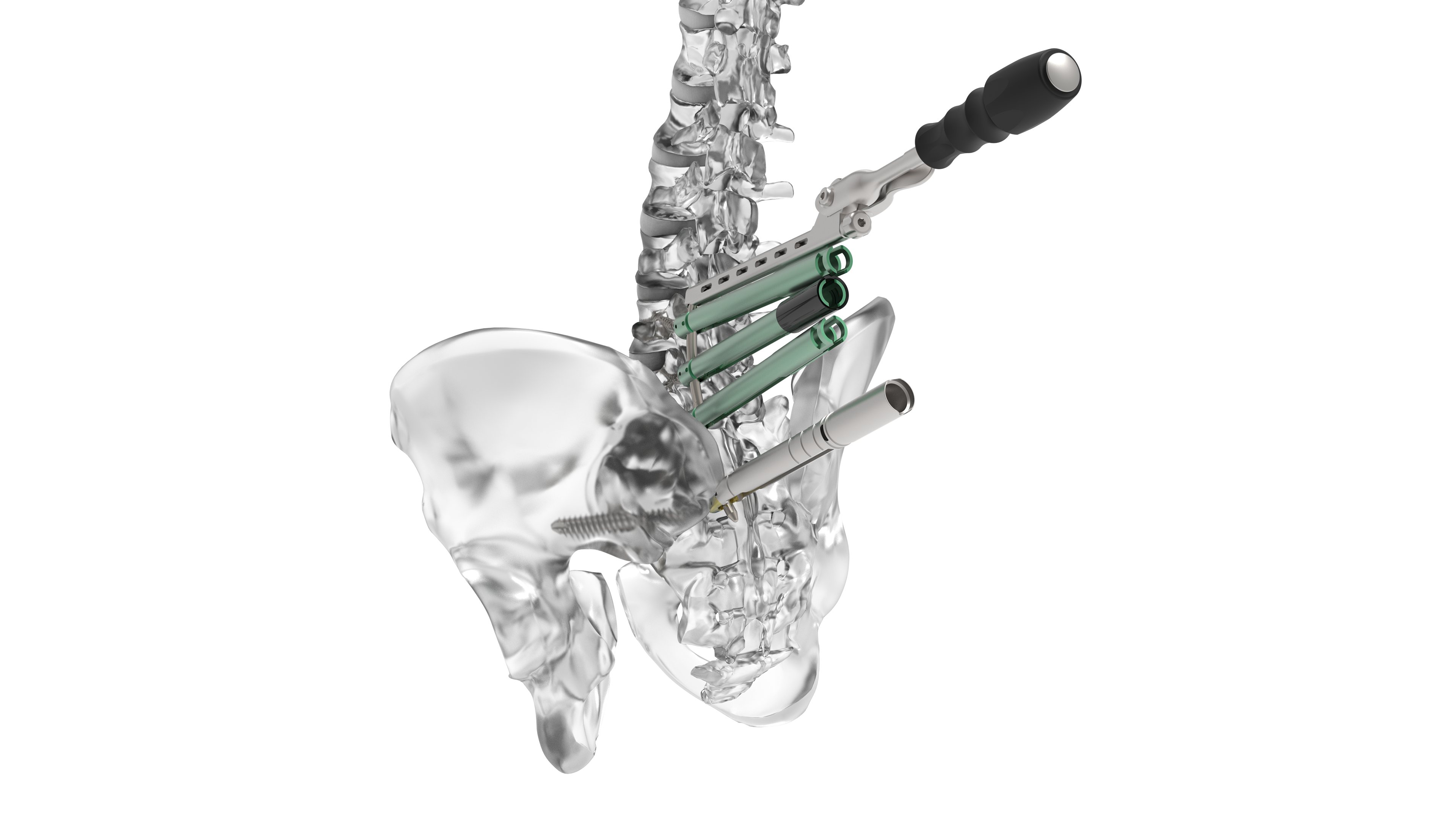

The cannulated uCentum screws enable secure and precise placement via guidewires as well as a minimally invasive application.

The system is characterized by a slim and low-profile screw heads. This provides space for bone apposition and good visibility for fusion control.

REQUEST INDIVIDUAL CONSULTATION NOW

HERE YOU CAN FIND MORE INFORMATION ABOUT THE PRODUCT

Learn more here Show less

Solutions

Secure application

The cannulated screws enable secure and precise placement via guidewires as well as a percutaneous application.

Additional safety

The guidewire holder prevents the guidewire from being pushed forward while the screw is being screwed in.

Navigation

Greater safety thanks to the comprehensive navigation module for preparation and screw insertion.

Individual adaptation

Wide range of implant components for individual adjustment to the patient.

Space for bone apposition

Thanks to the slim, low-profile screw head, there is space for bone apposition and good visibility for fusion monitoring.

Request consultation

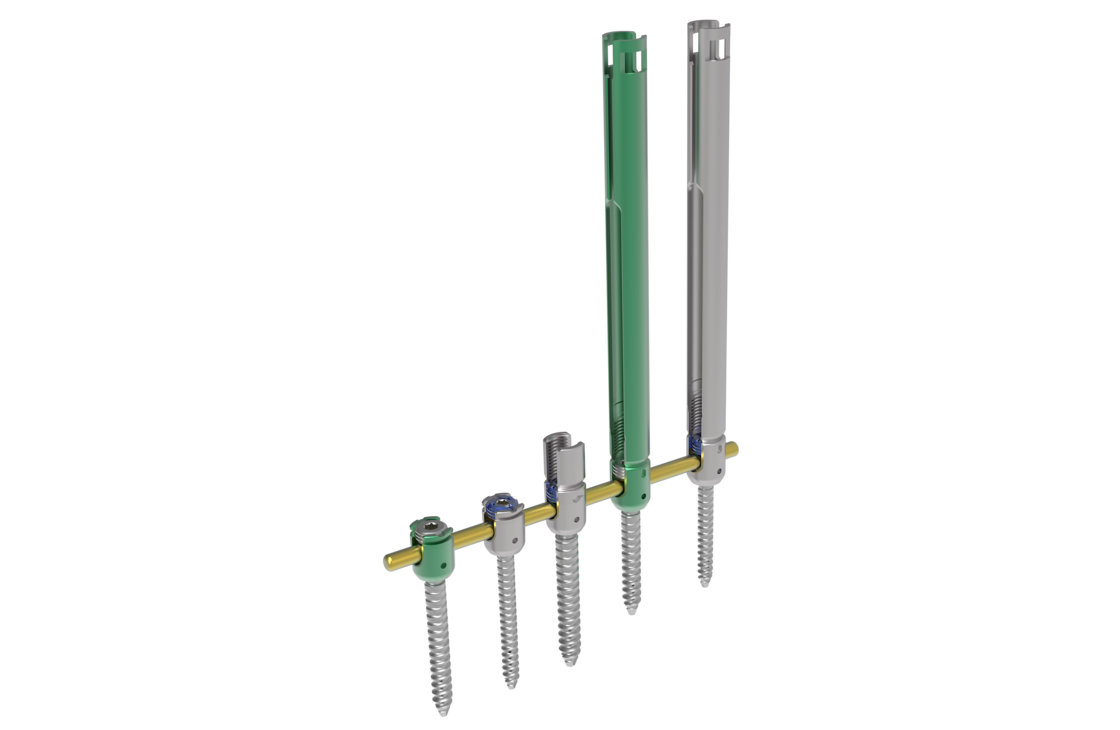

uCentum^TM features

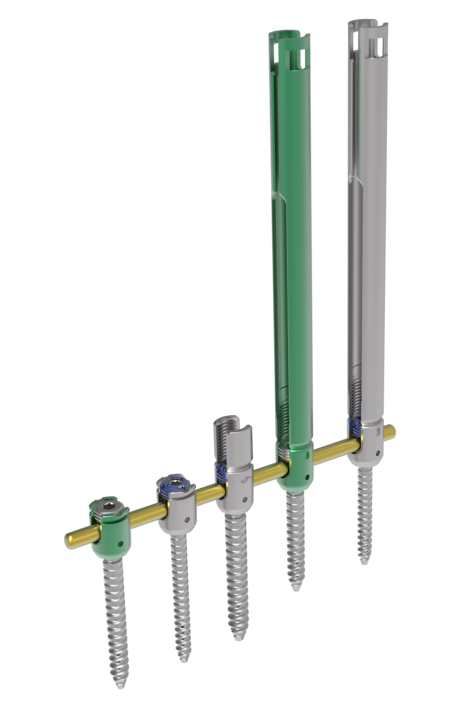

Complete system

The uCentum system can be used both openly and percutaneously and, in addition to the four types of screws, offers a wide range of lengths in order to fulfill individual requirements. Choose from various diameters measuring between Ø 4.5 mm and Ø 11.5 mm.

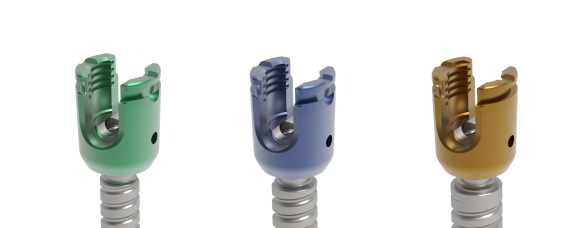

Friction head

The polyaxial uCentum screws have a screw head whose position remains stable and can only be changed with little force.

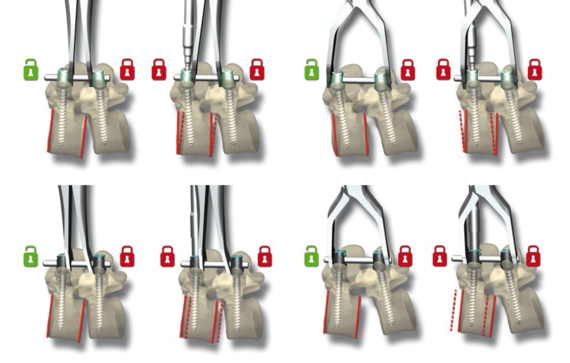

Fixed-angle and variable reposition

Looking for an implant that enables a wide range of reposition options for the vertebral body? Our pre-fixation uCentum screws make it possible to distract or compress either at fixed or variable angles.

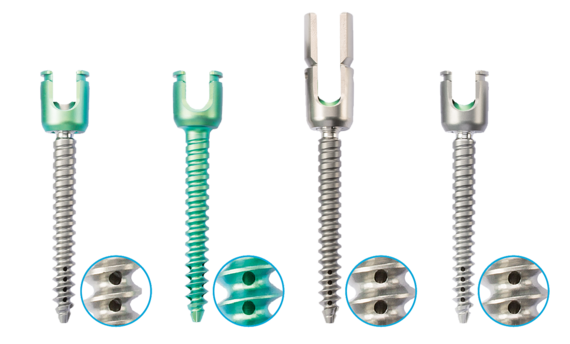

Cement augmentation through the screw

The cannulated screws in our uCentum system (apart from screws with Ø 4.5 mm) all feature perforations that enable cement augmentation through the previously implanted screw.

Product information

Implants

Screws

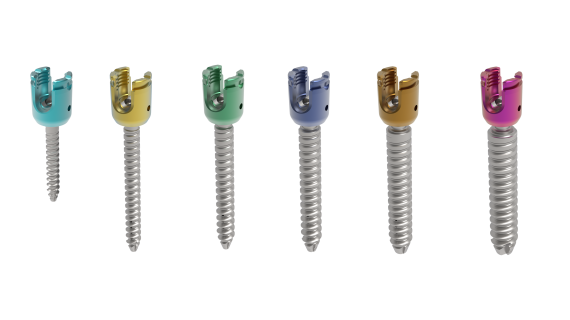

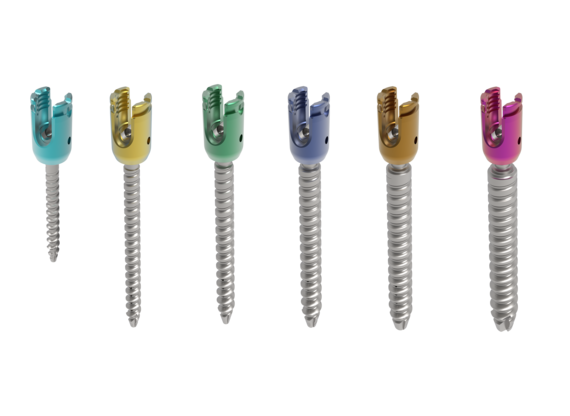

Screws, polyaxial, perforated

Ø 4.5 mm, length 25–50 mm
Ø 5.5 mm, length 25–55 mm, perforated
Ø 6.5 mm, length 30–60 mm, perforated
Ø 7.5 mm, length 35–60 mm, perforated
Ø 8.5 mm, length 35–60 mm, perforated
Ø 10 mm, length 45–60 mm, perforated
sterile, Ø 11.5 mm, length 45–55 mm, perforated*

Screws, monoaxial, perforated

Ø 4.5 mm, length 25–50 mm
Ø 5.5 mm, length 25–55 mm, perforated
Ø 6.5 mm, length 30–60 mm, perforated
Ø 7.5 mm, length 35–60 mm, perforated
Ø 8.5 mm, length 35–60 mm, perforated
Ø 10 mm, length 45–60 mm, perforated

Screws, pre-fixation, perforated

Ø 4.5 mm, length 25–50 mm
Ø 5.5 mm, length 25–55 mm, perforated
Ø 6.5 mm, length 30–60 mm, perforated
Ø 7.5 mm, length 35–60 mm, perforated
Ø 8.5 mm, length 35–60 mm, perforated
Ø 10 mm, length 45–60 mm, perforated

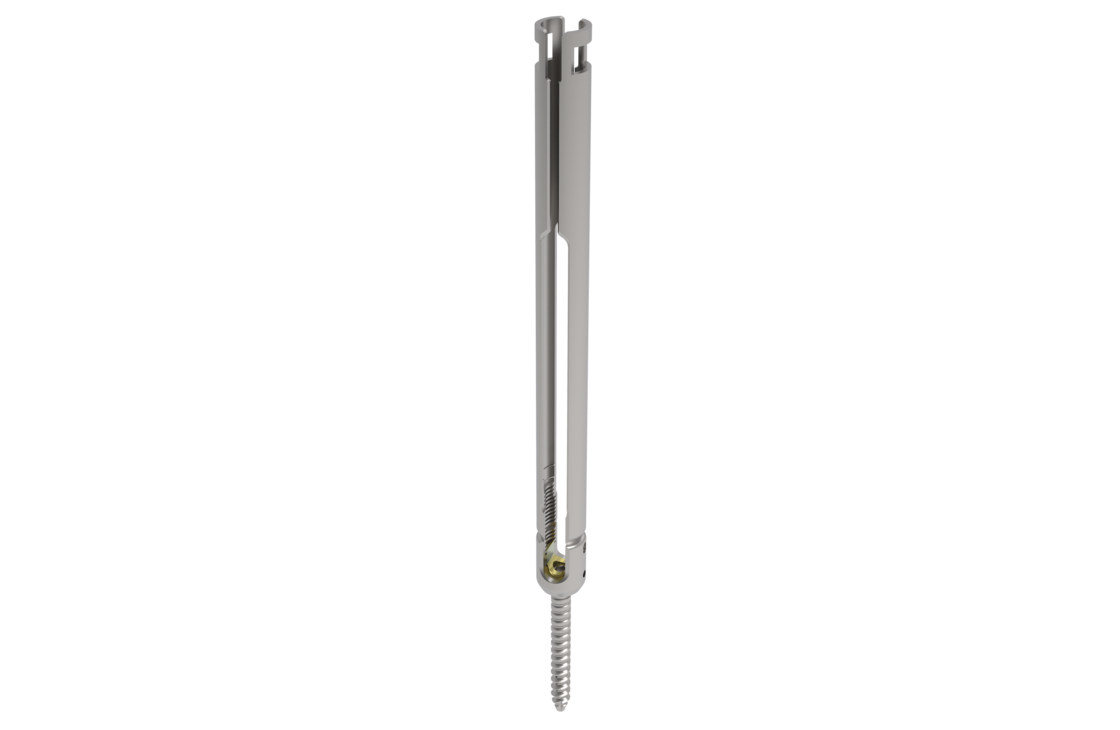

Longarm screws, pre-fixation, perforated

Ø 5.5 mm, length 25–55 mm, perforated
Ø 6.5 mm, length 30–60 mm, perforated
Ø 7.5 mm, length 35–60 mm, perforated
Ø 8.5 mm, length 35–60 mm, perforated

Crosslinks

Crosslink variable, for Ø 5.5 mm/Ø 6.0 mm, sterile, XXS, length 35-43 mm
Crosslink variable, for Ø 5.5 mm/Ø 6.0 mm, sterile, XS, length 41-56 mm
Crosslink variable, for Ø 5.5 mm/Ø 6.0 mm, sterile, S, length 53-68 mm
Crosslink variable, for Ø 5.5 mm/Ø 6.0 mm, sterile, M, length 66-80 mm
Crosslink variable, for Ø 5.5 mm/Ø 6.0 mm, sterile, L, length 78-94 mm
Crosslink variable, for Ø 5.5 mm/Ø 6.0 mm, sterile, XL, length 92-107 mm

Rods

Rod, Ø 5.5 mm, straight, length 30–500 mm, standard approach
Rod, Ø 5.5 mm, straight, length 30–500 mm, percutaneous approach
Rod, Ø 5.5 mm, curved, length 30–160 mm, percutaneous approach

Rod, Ø 6.0 mm, straight, length 30–500 mm, standard approach
Rod, Ø 6.0 mm, straight, length 30–500 mm, percutaneous approach
Rod, Ø 6.0 mm, curved, length 30–80 mm, percutaneous approach
Rod, sterile, Ø 6.0 mm, curved, length 85–160 mm, percutaneous approach*

Rod, CoCr, Ø 5.5 mm, straight, length 400 mm, hex, standard approach
Rod, CoCr, Ø 6.0 mm, straight, length 400 mm, hex, standard approach

Hybrid rod, sterile, Ø 4.0 mm/5.5 mm, length 200 mm (80 mm/120 mm)*
Hybrid rod, sterile, Ø 4.0 mm/5.5 mm, length 400 mm (160 mm/240 mm)*
Hybrid rod, sterile, Ø 4.0 mm/6.0 mm, length 200 mm (80 mm/120 mm)*
Hybrid rod, sterile, Ø 4.0 mm/6.0 mm, length 400 mm (160 mm/240 mm)*

Z-rod, sterile, Ø 5.5 mm, length 300 mm*
Z-rod, sterile, Ø 6.0 mm, length 300 mm*

Rod-rod-connectors

Locking screw, sterile
Rod-rod-connector, axial, single, sterile, Ø 5.5 mm/6.0 mm
Rod-rod-connector, axial, double, sterile, Ø 5.5 mm/6.0 mm
Rod-rod-connector, axial, single, sterile, Ø 5.5 mm/6.0 mm to Ø 4.0 mm/4.5 mm
Rod-rod-connector, axial, double, sterile, Ø 5.5 mm/6.0 mm to Ø 4.0 mm/4.5 mm
Rod-rod-connector, parallel, type UU, narrow, sterile, Ø 5.5 mm/6.0 mm
Rod-rod-connector, parallel, type UU, wide, sterile, Ø 5.5 mm/6.0 mm
Rod-rod-connector, parallel, type UC, narrow, sterile, Ø 5.5 mm/6.0 mm
Rod-rod-connector, parallel, type UC, wide, sterile, Ø 5.5 mm/6.0 mm
Rod-rod-connector, parallel, type UC, narrow, sterile, Ø 5.5 mm/6.0 mm to Ø 4.0 mm/4.5 mm
Rod-rod-connector, parallel, type UC, wide, sterile, Ø 5.5 mm/6.0 mm to Ø 4.0 mm/4.5 mm
Rod-rod-connector, parallel, type UC, narrow, sterile, Ø 4.0 mm/4.5 mm to Ø 5.5 mm/6.0 mm
Rod-rod-connector, parallel, type UC, wide, sterile, Ø 4.0 mm/4.5 mm to Ø 5.5 mm/6.0 mm
Rod-rod-connector, parallel, type OC, sterile, Ø 5.5 mm
Rod-rod-connector, parallel, type OC, sterile, Ø 6.0 mm

Offset connector

Offset connector, length 15 mm
Offset connector, length 30 mm
Offset connector, length 60 mm
Offset connector, sterile, length 100 mm, with locking screw

A lateral offset can be bridged to the rod using offset connectors in order to reduce the bending effort.

*These products are only available sterile

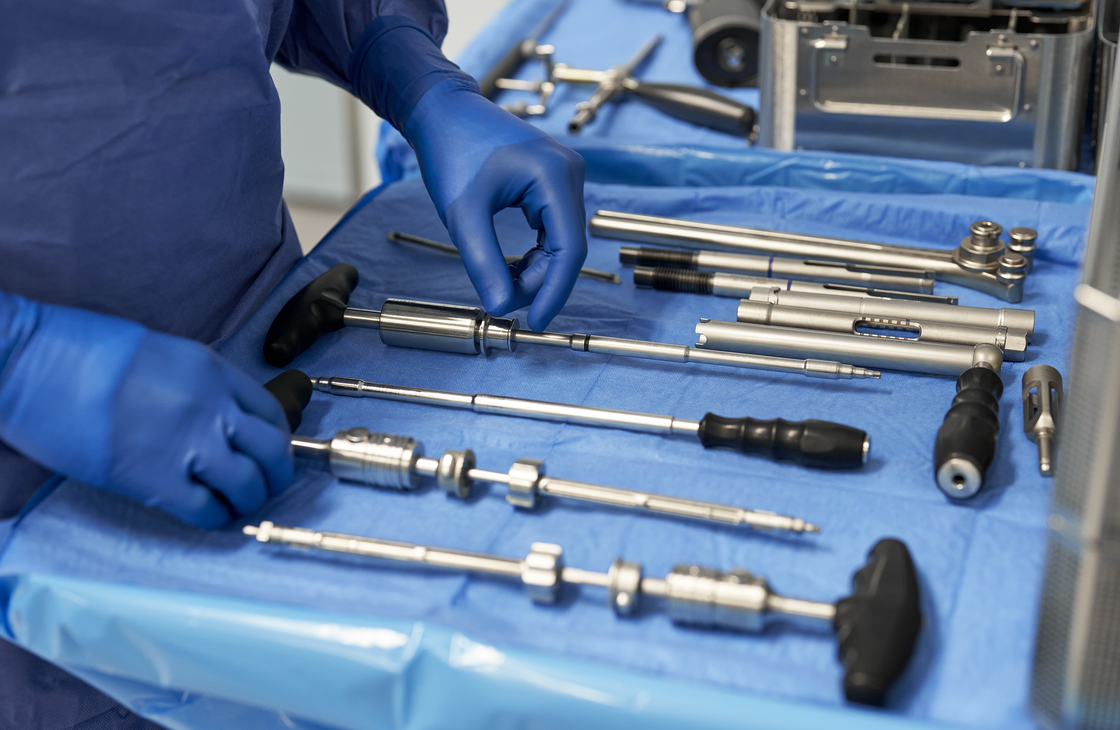

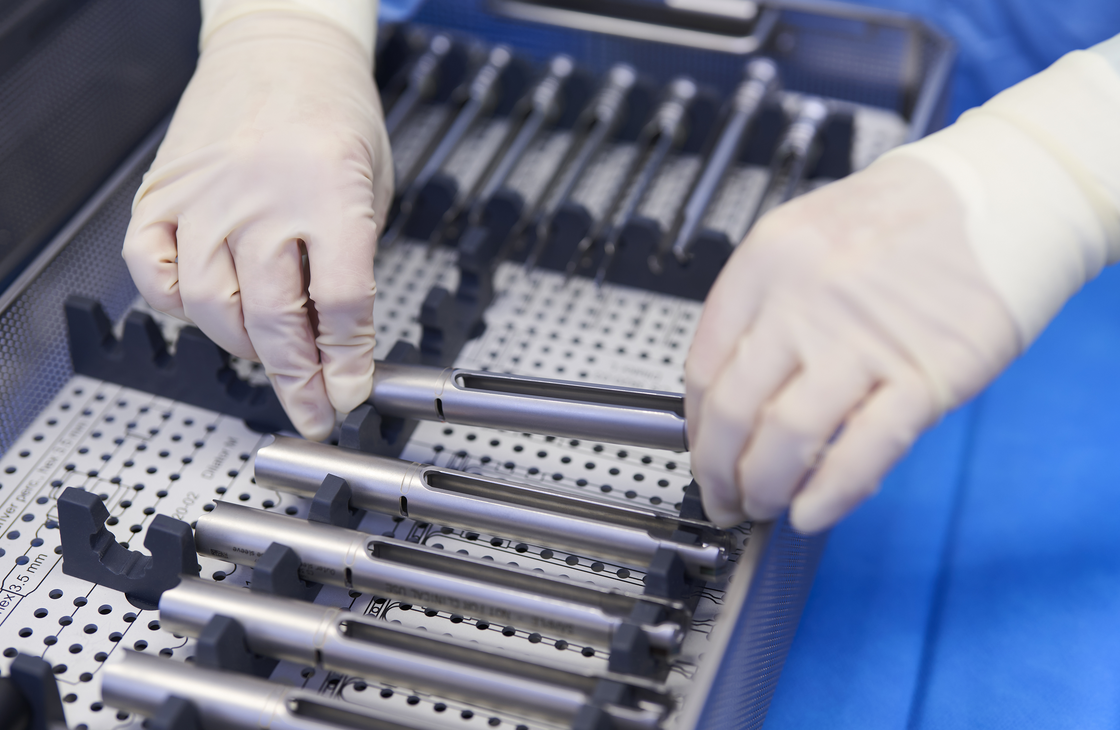

Instruments

Guidewire holder (optional)

The guidewire holder prevents the guidewire from being pushed forward while the screw is being screwed in. When used correctly, it represents an important safety feature of the system. Using the guidewire holder is recommended, in particular for bicortical screw placement.

Sterility

All implants are available sterile and partially non-sterile.

Downloads

Go to the eIFU portal

Complete solutions for spinal procedures

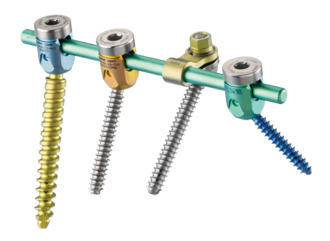

Find out how uCentum can be used in conjunction with our neon³ occipitocervical screw-rod system for procedures concerning the entire spine.

Request consultation

Other products

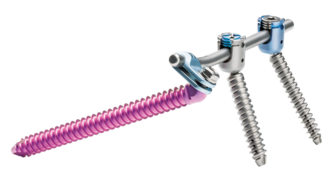

uBase^TM
