cosmicMIA

Dynamic screw-rod system

cosmicMIA is a screw-rod system that can be used for open and minimally invasive surgical procedures for posterior dynamic stabilization in the case of degenerative diseases of the thoracic to sacral (S1) spine.

  • Reliable pedicle screw technique
  • Preservation of some of the mobility in the segment
  • Sterile packed implants
  • Bonit® coating

dsf



cosmicMIA

Dynamic screw-rod system

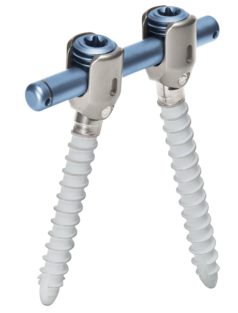

Overview picture of the dynamic rod-screw-system cosmicMIA from ulrich medical

Dynamic stabilization of the spine

Looking for a screw-rod system for posterior dynamic stabilization of the thoracic to sacral (S1) spine to offer your patients a procedure tailored to their needs?

cosmicMIA is an implant system that can be used for open and minimally invasive surgical procedures for posterior dynamic surgical stabilization and fixation of the thoracic, lumbar and sacral (S1) spine.

For the patient, minimal invasiveness means reduced surgery trauma and reduced blood loss as well as a shorter surgery time1 than with rigid instrumentation.

Thanks to the non-fusion technique, some of the mobility is preserved in the instrumented segment, along with the patient’s intervertebral disc function.

The resulting dynamics cause the axial load sharing between the implant and the spine column. This means that the mobility in flexion and extension will be partially preserved. As a result, the overload of the implant is avoided as well. At the same time, often painful rotation and translation movements between the vertebrae are safely stabilized.

The microcrystalline surface and osteoconductive properties of Bonit® support the body’s own new bone formation in the region of the screw, and consequently a fast ingrowth.

Learn more here Show less

Solutions

Non-fusion technique

Preserves some of the mobility in the instrumented segment, as well as the patient’s vertebral disc function.

Minimally invasive application

Lower surgery trauma, lower blood loss and shorter surgery times.

Rotation-stable joint design

The hinge joint between the screw head and the lower part of the screw creates a permanently movable connection between the screw and the rod.

Fast ingrowth of the screw

The microcrystalline surface and osteoconductive properties of Bonit® support the body’s own bone formation.

Product information

Screws

The cosmicMIA screw is cannulated and has a conical core. The thread is self-cutting and coated with Bonit® (calcium phosphate). The dynamic instrumentation is enabled by the hinged joint between the threaded part and the screw head.

The cosmicMIA screw is available in diameters of 5.5, 6.5 and 7.5 mm. The screw length ranges from 30 to 55 mm, in increments of 5 mm.

The cosmicMIA screws are each delivered as a package unit with an inserted locking screw.

Rods

The cosmicMIA rod is available with a diameter of 6 mm. The rod lengths are available in 10 mm increments from 40 to 120 mm. There is also a 200 mm rod available.

The rods are equipped with laser marks to indicate the area within which the screw may be fixed to the rod.

The system includes screwdrivers for minimally invasive surgery and open approach, as well as various dilators and sleeves.

Sterile packed implants

EN
EN
Brochure
cosmicMIA
Download
EN
EN
Flyer DYNORFUSE Study
cosmicMIA
Download
Multi
Multi
Instructions for use
Go to the eIFU portal

How much do you save with our cosmicMIA system?​

Due to the less invasive nature of its application compared to fusion surgery, the surgery time is reduced, resulting in lower costs for your institution.1

  • 13 % less surgery time1
  • 10 % lower in-hospital costs (in Germany)1
Cost calculator
(Source: Ärzteblatt, vol. 100, issue 50))

You save

when using dynamic stabilization with cosmicMIA.

Calculation method
Total costs for fusion without cosmicMIA:
Total costs for dynamic stabilization with cosmicMIA: (When using cosmicMIA, the operating time is reduced by up to 13%)

Clinical results of the DYNORFUSE study

Overview picture of the dynamic rod-screw-system cosmicMIA from ulrich medical

to fuse
or not to fuse

Contact us to find out how you can achieve clinical results comparable to fusion procedures when using cosmicMIA for dynamic stabilization.

We want to keep you in focus.
Subscribe to our newsletter.
1

Meyer B, Thomé C, Vajkoczy P, Kehl V, Dodel R, Ringel F, for the DYNORFUSE Study Group. Lumbar dynamic pedicle-based stabilization versus fusion in degenerative disease: a multicenter, double-blind, prospective, randomized controlled trial. J Neurosurg Spine. 2022

2

Rienmüller AC, Krieg SM, Schmidt FA, Meyer EL, Meyer B, Reoperation rates and risk factors for revision 4 years after dynamic stabilization of the lumbar spine. The Spine Journal 19 (2019) 113-120

3

Maleci A, Sambale RD, Schiavone M, Lamp F, Özer F, Von Strempel A, Eng, D, Nonfusion stabilization of the degenerative lumbar spine, J Neurosurg: Spine / May 13, 2011

What we stand for

"Made in Germany"

We build on our company headquarters and location in Ulm, where we develop and manufacture. This is true literally, because we are continually investing here – not only in our infrastructure, but also in the people who make the company what it is.

Quality

We develop and manufacture under one roof. This allows us to work hand in hand and in close proximity when it comes to optimizing products and processes. We ensure the high quality of our products and services by means of efficient quality management.

Over 110 years of experience

Since 1912, we have continuously set milestones in the innovation, quality and safety of our medical devices. This is something we are proud of! But we don’t rest on our laurels. Instead, we are constantly developing our medical technology products.

Ability to deliver

You can rely on a stable, predictable and safe procedure with our medical technology products. As your long-term partner, we have invested in our manufacturing capacities in Germany and expanded our product portfolio with high-performance cooperation partners.
